RF and mmWave Amplifiers
Axiro offers RF amplifiers with a variety of gain, noise figure and linearity features, in either differential or single-ended input impedances. The products feature innovative Zero-Distortion™ technology, enabling high output IP3 with very low current consumption – setting them apart from simple gain block amplifiers.
CONTACT SALESProduct Selector
Part Number (27)
F6921
0
RF Frequency Min (GHz)
-
RF Frequency Max (GHz)
-
Supply Voltage (V)
-
Input
-
Output
-
Gain (dB)
-
Noise Figure (dB)
-
OP1dB (dBm)
-
OIP3 (dBm)
-
Current (mA)
-
Package (mm)
-
F6922
0
RF Frequency Min (GHz)
-
RF Frequency Max (GHz)
-
Supply Voltage (V)
-
Input
-
Output
-
Gain (dB)
-
Noise Figure (dB)
-
OP1dB (dBm)
-
OIP3 (dBm)
-
Current (mA)
-
Package (mm)
-

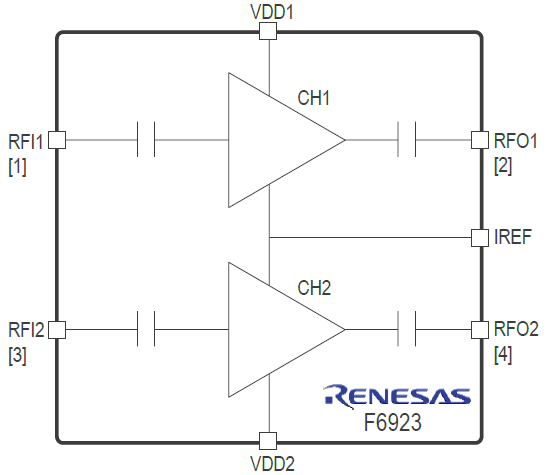

F6923
0
RF Frequency Min (GHz)
-
RF Frequency Max (GHz)
-
Supply Voltage (V)
-
Input
-
Output
-
Gain (dB)
-
Noise Figure (dB)
-
OP1dB (dBm)
-
OIP3 (dBm)
-
Current (mA)
-
Package (mm)
-

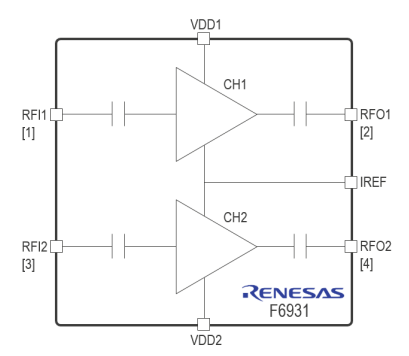

F6931
0
RF Frequency Min (GHz)
-
RF Frequency Max (GHz)
-
Supply Voltage (V)
-
Input
-
Output
-
Gain (dB)
-
Noise Figure (dB)
-
OP1dB (dBm)
-
OIP3 (dBm)
-
Current (mA)
-
Package (mm)
-

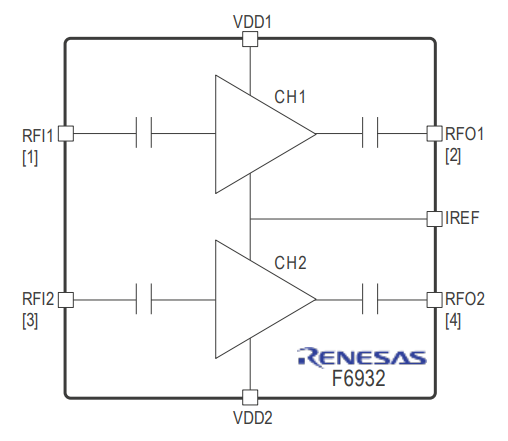

F6932
0
RF Frequency Min (GHz)
-
RF Frequency Max (GHz)
-
Supply Voltage (V)
-
Input
-
Output
-
Gain (dB)
-
Noise Figure (dB)
-
OP1dB (dBm)
-
OIP3 (dBm)
-
Current (mA)
-
Package (mm)
-

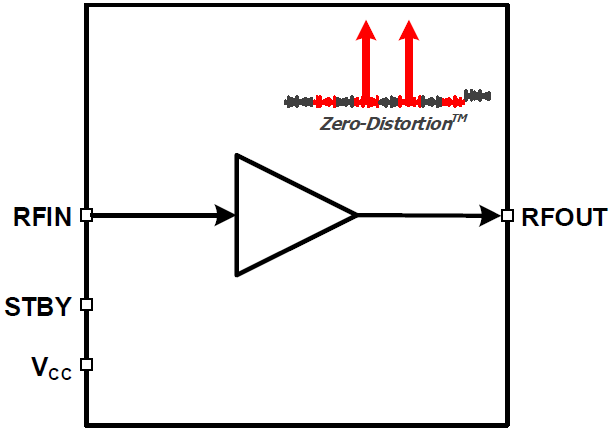

F1421
RF Driver Amplifier
RF Frequency Min (GHz)
1.7
RF Frequency Max (GHz)
2.2
Supply Voltage (V)
5
Input
50Ω, SE
Output
50Ω, SE
Gain (dB)
20.3
Noise Figure (dB)
5.5
OP1dB (dBm)
23
OIP3 (dBm)
40
Current (mA)
138
Package (mm)
4 x 4, 24-Pin QFN
F1427
RF Driver Amplifier
RF Frequency Min (GHz)
2.3
RF Frequency Max (GHz)
4.2
Supply Voltage (V)
5
Input
100Ω, DIFF
Output
50Ω, SE
Gain (dB)
35
Noise Figure (dB)
3.5
OP1dB (dBm)
28
OIP3 (dBm)
35
Current (mA)
140
Package (mm)
3 x 3, 16-Pin QFN

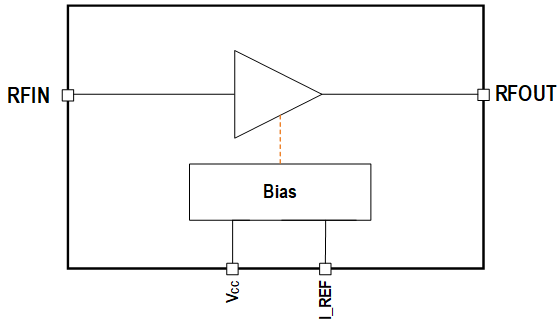

F1471
RF Driver Amplifier
RF Frequency Min (GHz)
0.4
RF Frequency Max (GHz)
4.2
Supply Voltage (V)
5
Input
50Ω, SE
Output
50Ω, SE
Gain (dB)
17
Noise Figure (dB)
4.3
OP1dB (dBm)
28.5
OIP3 (dBm)
39
Current (mA)
130
Package (mm)
3 x 3, 16-Pin QFN
F1475
RF Driver Amplifier
RF Frequency Min (GHz)
0.7
RF Frequency Max (GHz)
2.8
Supply Voltage (V)
5
Input
50Ω, SE
Output
50Ω, SE
Gain (dB)
18.5
Noise Figure (dB)
4.8
OP1dB (dBm)
30
OIP3 (dBm)
42
Current (mA)
225
Package (mm)
4 x 4, 20-Pin QFN
F1476
RF Driver Amplifier
RF Frequency Min (GHz)
3.0
RF Frequency Max (GHz)
5
Supply Voltage (V)
5
Input
50Ω, SE
Output
50Ω, SE
Gain (dB)
18
Noise Figure (dB)
5.6
OP1dB (dBm)
27.5
OIP3 (dBm)
41
Current (mA)
200
Package (mm)
4 x 4, 20-Pin QFN

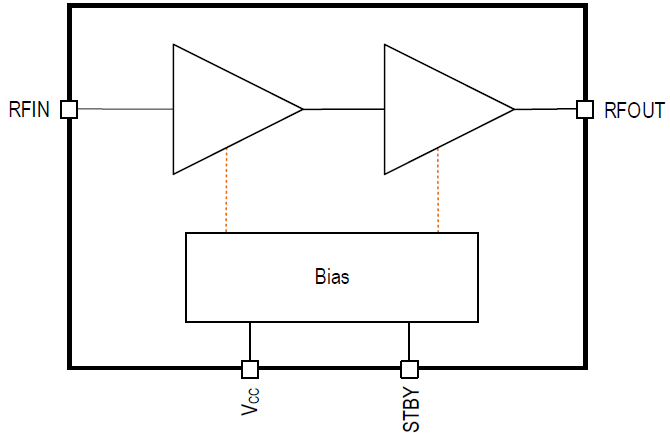

F1478
RF Driver Amplifier
RF Frequency Min (GHz)
1.8
RF Frequency Max (GHz)
5
Supply Voltage (V)
3.3 - 5
Input
50Ω, SE
Output
50Ω, SE
Gain (dB)
30.3
Noise Figure (dB)
1.6
OP1dB (dBm)
23.6
OIP3 (dBm)
35.7
Current (mA)
140
Package (mm)
3 x 3, 16-Pin QFN
F1485
RF Driver Amplifier
RF Frequency Min (GHz)
2.3
RF Frequency Max (GHz)
5
Supply Voltage (V)
5
Input
50Ω, SE
Output
50Ω, SE
Gain (dB)
36.5
Noise Figure (dB)
3.8
OP1dB (dBm)
27
OIP3 (dBm)
32
Current (mA)
110
Package (mm)
3 x 3, 16-Pin QFN
F1485L
RF Driver Amplifier
RF Frequency Min (GHz)
3.1
RF Frequency Max (GHz)
4.2
Supply Voltage (V)
5
Input
100Ω DIFF
Output
50Ω SE
Gain (dB)
40
Noise Figure (dB)
3.5
OP1dB (dBm)
27
OIP3 (dBm)
31
Current (mA)
100
Package (mm)
3 x 3, 16–Pin QFN
F14292
RF Driver Amplifier
RF Frequency Min (GHz)
1.7
RF Frequency Max (GHz)
2.7
Supply Voltage (V)
3.3 - 5
Input
100Ω, DIFF
Output
50Ω, SE
Gain (dB)
40
Noise Figure (dB)
5.5
OP1dB (dBm)
31
OIP3 (dBm)
38
Current (mA)
305
Package (mm)
4 x 4, 24-Pin QFN
F14293
RF Driver Amplifier
RF Frequency Min (GHz)
1.7
RF Frequency Max (GHz)
2.7
Supply Voltage (V)
3.3 - 5
Input
100Ω, DIFF
Output
50Ω, SE
Gain (dB)
40
Noise Figure (dB)
5.5
OP1dB (dBm)
31
OIP3 (dBm)
38
Current (mA)
305
Package (mm)
4 x 4, 24-Pin QFN

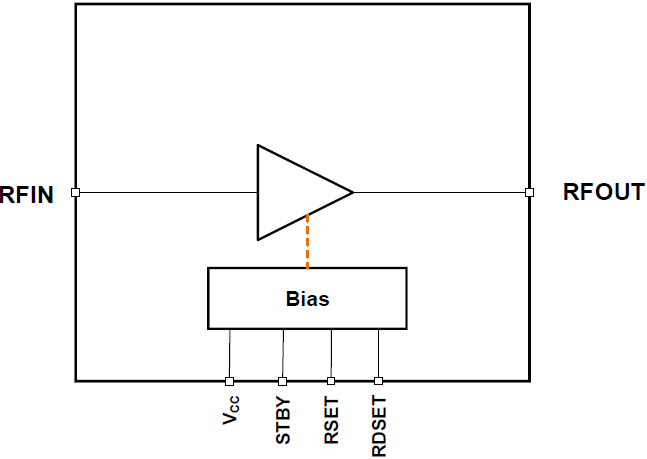

F0424
Interface Amplifier
RF Frequency Min (GHz)
0.6
RF Frequency Max (GHz)
5
Supply Voltage (V)
5
Input
50Ω, SE
Output
50Ω, SE
Gain (dB)
17.4
Noise Figure (dB)
4.5
OP1dB (dBm)
23.2
OIP3 (dBm)
42
Current (mA)
70
Package (mm)
2 x 2, 8-Pin DFN
F1129LB
Interface Amplifier
RF Frequency Min (GHz)
1.4
RF Frequency Max (GHz)
3.2
Supply Voltage (V)
5
Input
50Ω, SE
Output
50Ω, SE
Gain (dB)
17
Noise Figure (dB)
2.3
OP1dB (dBm)
21
OIP3 (dBm)
40
Current (mA)
61
Package (mm)
2 x 2, 12-Pin QFN
F1129MB
Interface Amplifier
RF Frequency Min (GHz)
3
RF Frequency Max (GHz)
4.2
Supply Voltage (V)
5
Input
50Ω, SE
Output
100Ω, DIFF
Gain (dB)
20
Noise Figure (dB)
1.6
OP1dB (dBm)
20.5
OIP3 (dBm)
36
Current (mA)
60
Package (mm)
2 x 2, 12-Pin QFN

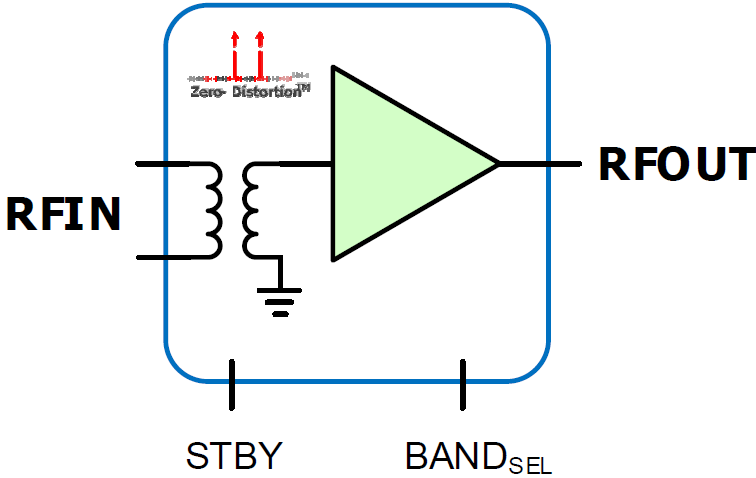

F1423
Interface Amplifier
RF Frequency Min (GHz)
0.6
RF Frequency Max (GHz)
3
Supply Voltage (V)
5
Input
50Ω, SE
Output
100Ω, DIFF
Gain (dB)
19
Noise Figure (dB)
1.8
OP1dB (dBm)
18
OIP3 (dBm)
32
Current (mA)
120
Package (mm)
4 x 4, 24-Pin QFN
F1429LB
Interface Amplifier
RF Frequency Min (GHz)
1.4
RF Frequency Max (GHz)
3.2
Supply Voltage (V)
5
Input
50Ω, DIFF
Output
50Ω, SE
Gain (dB)
13.1
Noise Figure (dB)
5.1
OP1dB (dBm)
21.5
OIP3 (dBm)
41.8
Current (mA)
64
Package (mm)
2 x 2, 12-Pin DFN
F1429MB
Interface Amplifier
RF Frequency Min (GHz)
3.0
RF Frequency Max (GHz)
4.2
Supply Voltage (V)
5
Input
100Ω, DIFF
Output
50Ω, SE
Gain (dB)
21.5
Noise Figure (dB)
1.9
OP1dB (dBm)
22
OIP3 (dBm)
40
Current (mA)
73
Package (mm)
2 x 2, 12-Pin QFN

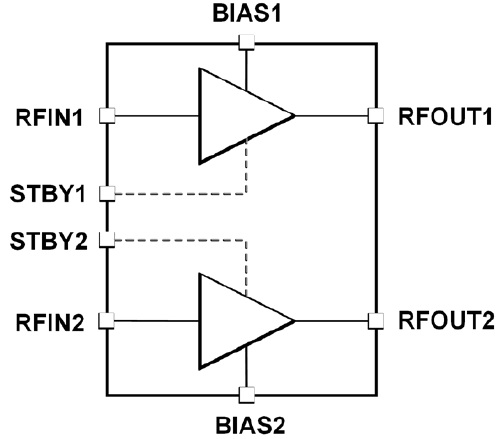

F0109
Low Noise Amplifier
RF Frequency Min (GHz)
0.65
RF Frequency Max (GHz)
1
Supply Voltage (V)
5
Input
50Ω
Output
50Ω
Gain (dB)
18
Noise Figure (dB)
0.55
OP1dB (dBm)
24.5
OIP3 (dBm)
41
Current (mA)
120
Package (mm)
4 x 4, 16-Pin QFN
F0110
Low Noise Amplifier
RF Frequency Min (GHz)
1.5
RF Frequency Max (GHz)
2.3
Supply Voltage (V)
5
Input
50Ω
Output
50Ω
Gain (dB)
18.5
Noise Figure (dB)
0.55
OP1dB (dBm)
22
OIP3 (dBm)
39
Current (mA)
110
Package (mm)
4 x 4, 16-Pin QFN

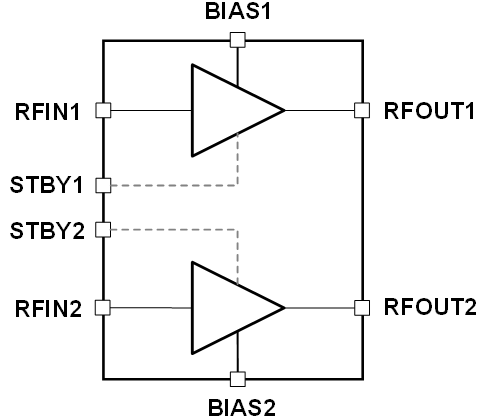

F0111
Low Noise Amplifier
RF Frequency Min (GHz)
2.2
RF Frequency Max (GHz)
4.2
Supply Voltage (V)
5
Input
50Ω
Output
50Ω
Gain (dB)
18
Noise Figure (dB)
0.7
OP1dB (dBm)
23
OIP3 (dBm)
38
Current (mA)
90
Package (mm)
4 x 4, 16-Pin QFN
F1490
RF Driver Amplifier
RF Frequency Min (GHz)
1.8
RF Frequency Max (GHz)
5
Supply Voltage (V)
5
Input
50Ω, SE
Output
50Ω, SE
Gain (dB)
39.5 / 35.5
Noise Figure (dB)
2.5
OP1dB (dBm)
24
OIP3 (dBm)
38
Current (mA)
75
Package (mm)
3 x 3, 16-Pin QFN
F1420
RF Driver Amplifier
RF Frequency Min (GHz)
0.7
RF Frequency Max (GHz)
1.1
Supply Voltage (V)
5
Input
50Ω, SE
Output
50Ω, SE
Gain (dB)
17.4
Noise Figure (dB)
4.5
OP1dB (dBm)
23.2
OIP3 (dBm)
42
Current (mA)
105
Package (mm)
4 x 4, 24-Pin QFN
F0180
Wideband Low Noise Amplifier
RF Frequency Min (GHz)
-
RF Frequency Max (GHz)
-
Supply Voltage (V)
-
Input
-
Output
-
Gain (dB)
-
Noise Figure (dB)
-
OP1dB (dBm)
-
OIP3 (dBm)
-
Current (mA)
-
Package (mm)
-
